Description:

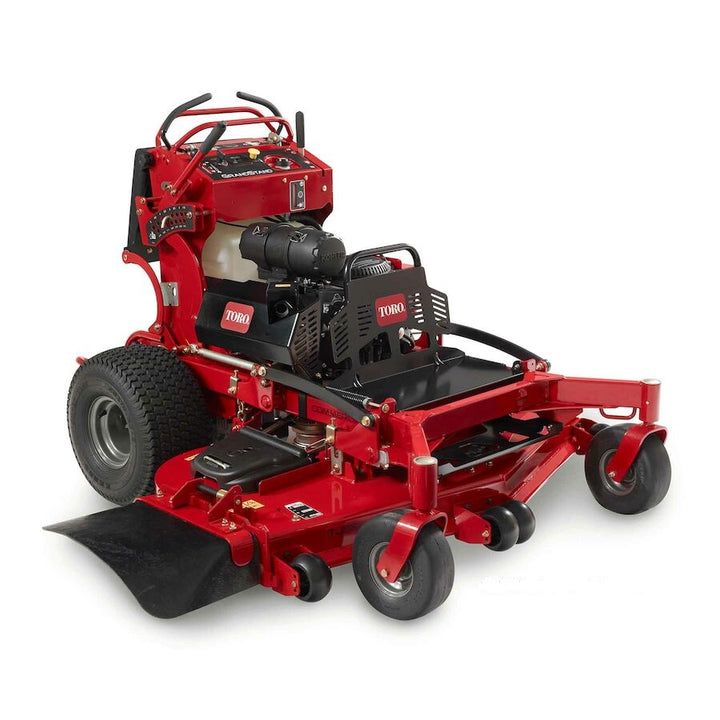

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 22 hp Kawasaki FX 726cc engine.
Features:
- Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
- Foldable operator platform instantly converts the machine to a walk-behind.
- Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
- Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
- No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
- Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
- The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
- 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
- A wide stance and optimal balance enhance hillside stability and control.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Specification:
- Adjustable Discharge Baffle
- Standard, Tools-Free
- Air Filter
- Heavy-Duty Canister Air Cleaner
- Anti Scalp Wheels
- Optional
- Blade Tip Speed
- 18,500 ft/min / 5,638 m/min
- Blades
- 0.204 in. (0.5 cm) heat-treated steel
- Box Dimensions
- 82 in. x 63 in. x 52 in. / 208.3 cm x 160.0 cm x 132.1 cm
- CARB Compliant
- Not CARB Compliant
- Carrier Frame
- 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
- Caster Tires
- 11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic
- Clutch
- Electromagnetic
- Comfort Platform
- Foldable Operator Platform with Suspension
- Controls
- Twin lever
- Deck Design
- 80-grade 7-gauge 52" (132.1 cm) TURBO FORCE® w/bull-nose bumper
- Deck Material
- 7 Gauge Steel
- Deck Size
- 52 in / 132 cm
- Discharge Chute
- Rubber
- Drive System
- Unitized Pumps 10cc rev Wheel Motors 10 cir
- Drive Tires
- 20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm)
- Engine
- 22 hp (16.4kW) Kawasaki FX691V 726 cc
- Engine Brand
- Kawasaki
- Engine Displacement (cc)
- 726 cc
- Engine Horsepower
- 22.0 hp
- Forward Ground/Transport Speed
- Up to 10.0 mph / 16.0 kph
- Front Bumper
- Reinforced Bull-Nose
- Fuel Capacity
- 10.5 gal. / 39.7 L / 42 Qt.
- Fuel Type
- Gasoline
- Height of Cut
- 1.5 - 5.0 in. / 3.8 - 12.7 cm
- Hour Meter
- Standard
- Hydraulic Fluid
- Premium synthetic
- Product Type
- Stand-On Mowers
- Product Use
- Commercial
- Spindle Bearings
- Maintenance-free
- Spindle Housing
- 9 in / 22.9 cm Diameter Cast Aluminum
- Start Type
- Electric
- Steering Controls
- Twin Lever
- Weight
- 880 lbs / 399.2 kg
