Description:

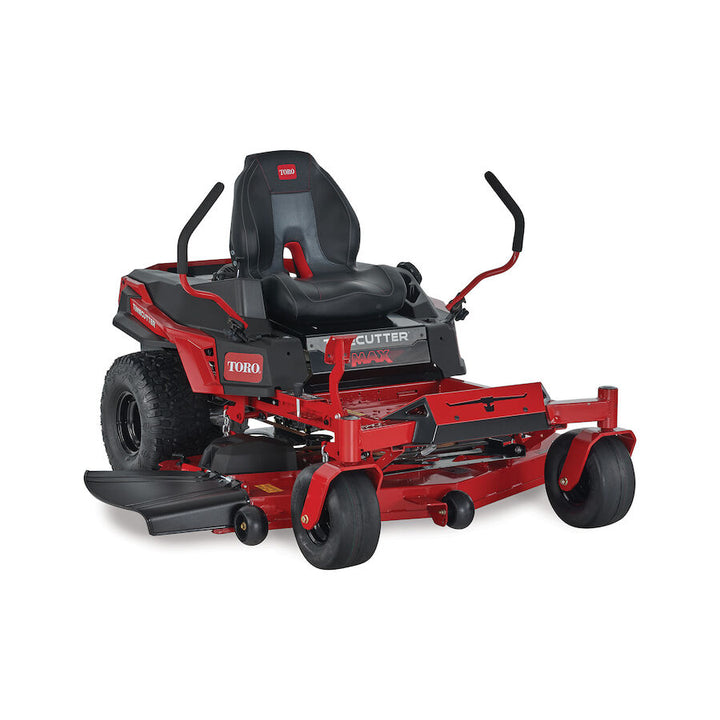

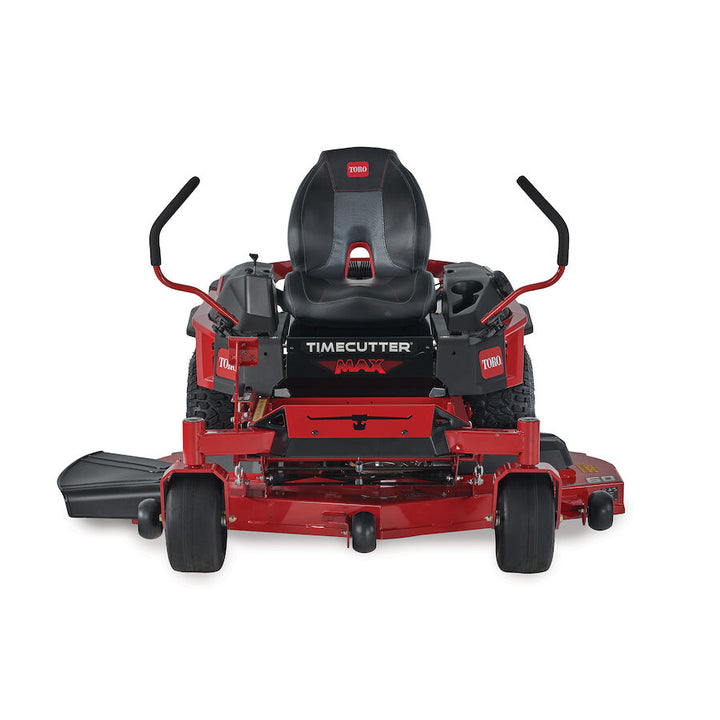

No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.
Features:
- Over 100 years of Pro DNA course through the veins of every mower we build.
- Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.
- The gaming-style seat gives you big time support exactly where you need it.
- The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
Specifications:
-
Product Type: TimeCutter Max
-
Product Use: Residential
-
Weight: 668 lbs / 303 kg
-
Box Dimensions: 82.0 in. x 63.0 in. x 35.0 in. (208.3 cm x 160.0 cm x 88.9 cm)
Engine & Power
-
Engine Brand: Kawasaki
-
Engine Model: FR691V
-
Engine Displacement: 726 cc
-
Engine Horsepower: 23.0 hp
-
Engine Power: 17.2 kW
-
Cooling System: Air Cooled
-
Start Type: Electric
-
Fuel Type: Gasoline
-
Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
-
Recommended Oil Type: 10W-30
-
CARB Compliant: No
Drive System
-
Drive Type: Rear-Wheel Drive
-
Drive System: Hydrostatic
-
Transmission: Dual Hydrostatic HG-ZT2800
-
Hydraulic Drive: Standard
-
Forward Ground/Transport Speed: Up to 7.0 mph / 11.2 kph
-
Forward Mowing Speed: Up to 7.0 mph / 11.2 kph
Cutting System
-
Deck Size: 60 in / 152 cm
-
Deck Material: 10-Gauge Steel
-
Deck Design: IronForged®
-
Height of Cut: 1.0 - 5.0 in. / 2.5 - 12.7 cm
-
Blade Tip Speed: 18,500 ft/min / 5,638 m/min
-
Number of Blades: 3
-
Cutter System: Steel Cutting Blade
-
Discharge Chute: Side
-
Washout Port: Standard
-
Foot Operated Height of Cut: Standard
Frame & Build
-
Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
-
Carrier Frame: 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
-
Deck Spindle Housing: Cast-Aluminum
-
Spindle Bearings: Maintenance-free
-
Greasable Bearings: Yes
Wheels & Tires
-
Front Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
-
Rear Drive Tires: 20 in. x 10 in. - 8 in. (51 cm x 26 cm - 20.3 cm)
-
Tires (Alt.): 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
-
Anti-Scalp Wheels: 3 Standard
Comfort & Controls
-
Seat: 19" Gaming Style
-
Armrests: Optional
-
Steering Controls: Twin Lever
-
Steering Dampeners: Standard Dampers
-
Comfort Platform: Standard Suspension
-
Cup Holder: Standard
-
Hour Meter: Standard
Additional Features
-
Clutch: Electromagnetic
-
Air Filter: Standard Kawasaki Air Cleaner
-
Hitch Bracket: Standard
-
Lighting: Optional
-
Roll-Over Protection System (ROPS): Optional
-
Bagger Capacity: 4.9 bushels
-
Terrain Type: Flat with Obstacles
| Width |
Weight |
Height |
Length |
| 0 Inch |
668 Pounds |
0 Inch |
0 Inch |
