Description:
When it comes to your yard, second best just won't cut it. That's why the Toro Time Cutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you're done. With features like an unflinching heavy duty Iron Forged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.
Features:
- Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
- Over 100 years of Pro DNA course through the veins of every mower we build.

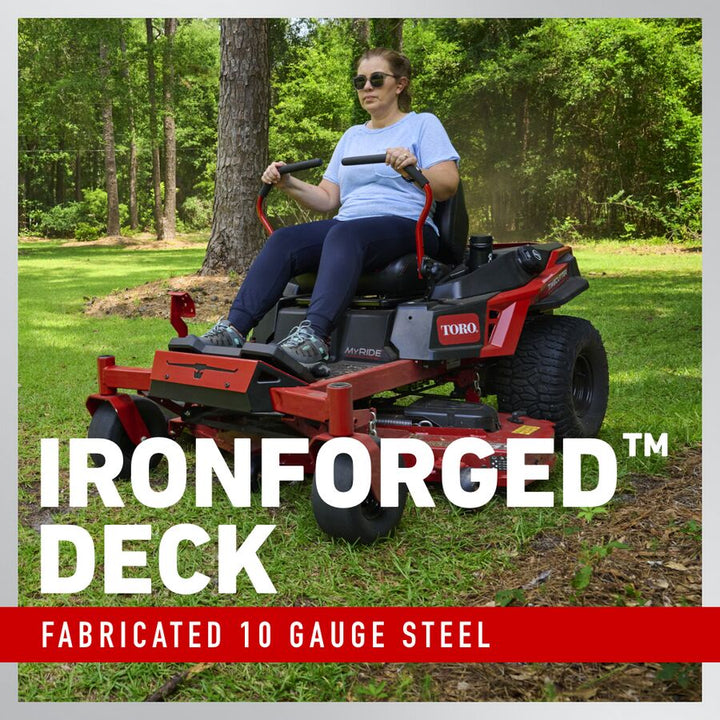

- Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.

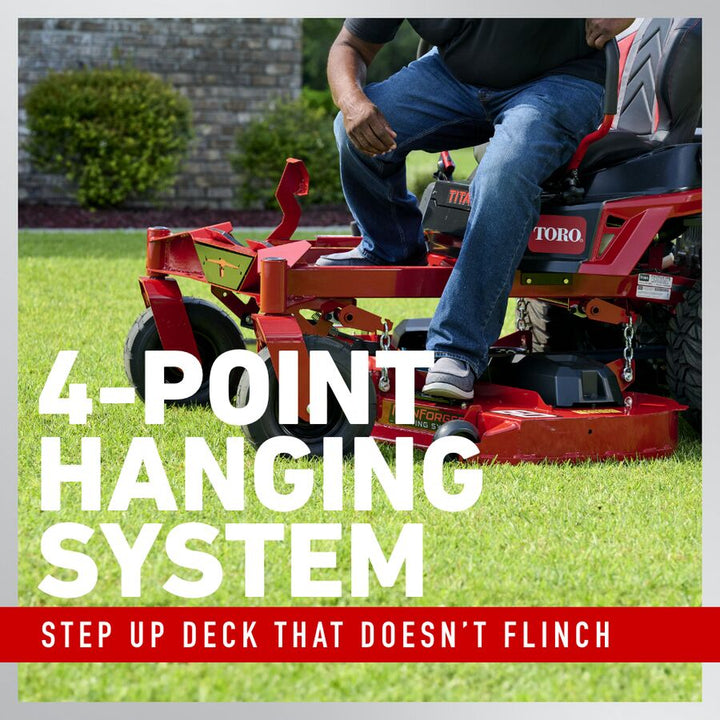

- The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Aggressive paint job that says you don't keep up with the Jones', you are the Jones'.
- Download the My Toro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
Specifications:
-
Air Filter: Standard Kawasaki Air Cleaner
-
Anti Scalp Wheels: 3 Standard
-
Armrests: Optional
-
Bagger Capacity: 4.9 bushels
-
Blade Tip Speed: 18,500 ft/min / 5,638 m/min
-
Box Dimensions: 82.0 in. x 63.0 in. x 35.0 in. / 208.3 cm x 160.0 cm x 88.9 cm
-
CARB Compliant: Not CARB Compliant
-
Carrier Frame: 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
-
Caster Tires: 13 in. x 6.5 in. - 6 in. (33 x 16.5 cm - 15.2 cm) Pneumatic
-
Clutch: Electromagnetic
-
Comfort Platform: MyRIDE® Suspension System
-
Cooling System: Air Cooled
-
Crankshaft: 1" (25 mm) w/Steel Protector
-
Cup Holder: Standard
-
Cutter System: Steel Cutting Blade
-
Deck Design: 10-Gauge steel IrongForged®
-
Deck Material: 10 Gauge Steel
-
Deck Size: 60 in / 152 cm
-
Discharge Chute: Side
-
Drive System: Hydrostatic
-
Drive Tires: 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
-
Drive Type: Rear-Wheel Drive
-

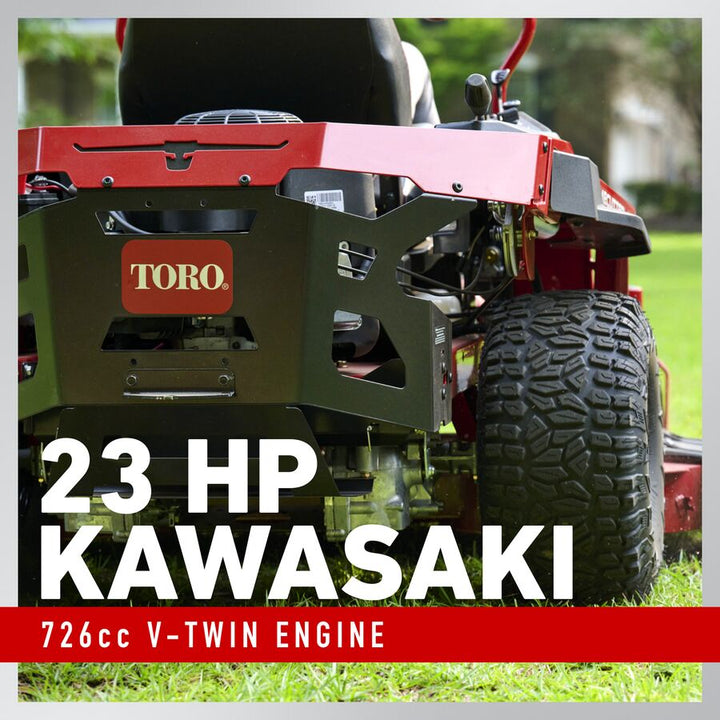

Engine: 23 hp Kawasaki FR691V 726cc
-
Engine Brand: Kawasaki
-
Engine Displacement (cc): 726 cc
-
Engine Horsepower: 23.0 hp
-
Engine Power (kW): 17.2 kW
-
Foot Operated Height of Cut: Standard
-
Forward Ground/Transport Speed: Up to 7.0 mph / 11.2 kph
-
Forward Mowing Speed: Up to 7.0 mph / 11.2 kph
-
Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
-
Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
-
Fuel Type: Gasoline
-
Greasable Bearings: Yes
-
Height of Cut: 1.0 - 5.0 in. / 2.5 - 12.7 cm
-
Hitch Bracket: Standard
-
Hour Meter: Standard
-
Hydraulic Drive: Standard
-
Lighting: Optional
-
Number of Blades: 3
-
Product Type: TimeCutter Max MyRide
-
Product Use: Residential
-
Recommended Oil Type: 10W-30
-
Roll-Over Protection (ROPS): Optional
-
Seat: 19" Gaming Style
-
Spindle Bearings: Maintenance-free
-
Spindle Housing: Cast-Aluminum
-
Start Type: Electric
-
Steering Controls: Twin Lever
-
Steering Dampeners: Standard Dampers
-
Terrain Type: Flat with Obstacles
-
Tires: 13 in. x 6.5 in. (33 cm x 16.5 cm) Front, 20 in. x 11 in. (50.8 cm x 27.9 cm) Rear
-
Transmission: Dual Hydrostatic HG-ZT2800
-
Washout Port: Standard
-
Weight: 704 lbs / 319.3 kg
| Width |
Weight |
Height |
Length |
| 0 Inch |
704 Pounds |
0 Inch |
0 Inch |
