Description:
Get ready to wreak some HAVOC. This beast of a machine is designed to send an immediate message to your property and your neighbors, that you are not to be trifled with. The Havoc Edition is the largest TimeCutter ever made with features like a 60 in. IronForged™ Deck, MyRIDE® Suspension system, and a 1-of-a-kind paint job. When you have the HAVOC anyone who sees you on this machine will know you're serious about mowing, and you will do it whenever you please.
Features:
- Aggressive paint job that says you don't keep up with the Jones', you are the Jones'.
- Enjoy a more comfortable ride, saving your body from the toughest terrain.
- Toro IronForged® fabricated deck ensures years of reliability and top performance.
- Pro DNA - Commercial DNA courses through these machines' veins with the same technology professionals depend on.
- Easily clear unexpected obstacles without having to stop with the deck lift pedal.
- Take control over your mowing speed, while never sacrificing blade tip speed.
- Simply unlatch the belt cover and easily sweep away debris to prevent deck corrosion and belt wear.

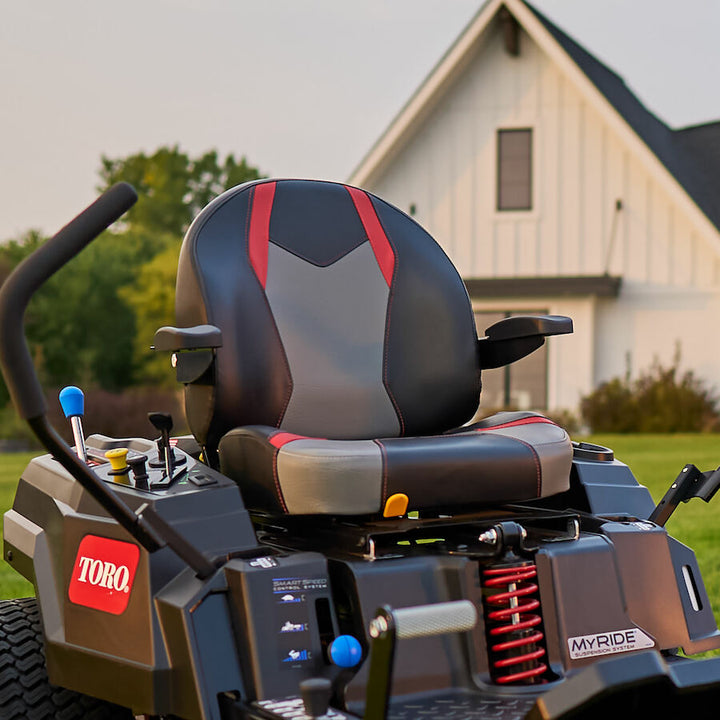

- Ride in style with an 18" handcrafted high-back seat with arm rests that provides back support.
- Shield your engine from tire spray and avoid backsplash on you with protective tire fenders.
- Stay cool and hydrated with a built-in cup holder.
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
Specifications:
General:
-
Product Type: TimeCutter Max MyRide
-
Intended Use: Residential
-
Recommended Yard Size: Up to 4 acres
-
Weight: 673 lbs / 305.3 kg
-
Fuel Type: Gasoline
-
Fuel Capacity: 3 gallons / 11.4 liters / 12 quarts
Engine and Transmission:
-
Engine Brand: Kohler
-
Engine Model: KT735
-
Engine Horsepower: 24.0 hp
-
Engine Displacement: 725 cc
-
Cooling System: Air Cooled
-
Crankshaft: 1" (25 mm) with Steel Protector
-
Transmission: Dual Hydrostatic HG-ZT2800
-
Drive System: 5-Speed Transmission
Dimensions:
-
Box Dimensions: 82 in. x 63 in. x 35 in. / 208.3 cm x 160.0 cm x 88.9 cm
Performance:
-
Forward Ground/Transport Speed: Up to 7.0 mph / 11.2 kph
-
Height of Cut: 1.0 - 4.25 in. / 2.5 - 10.8 cm
-
Foot Operated Height of Cut: Standard
-
Anti Scalp Wheels: Standard
Deck and Blades:
-
Deck Size: 60 in / 152 cm
-
Deck Design: 10 gauge Fabricated IronForged™
-
Deck Material: 10 gauge steel
-
Number of Blades: 3
-
Blades: HI FLOW 20.5 in. Black
-
Discharge Chute: Side
-
Washout Port: Standard
-
Bagger Capacity: 4.9 bushels
-
Recycler Kit: Kit available
Tires:
-
Caster Tires (Front): 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Pneumatic
-

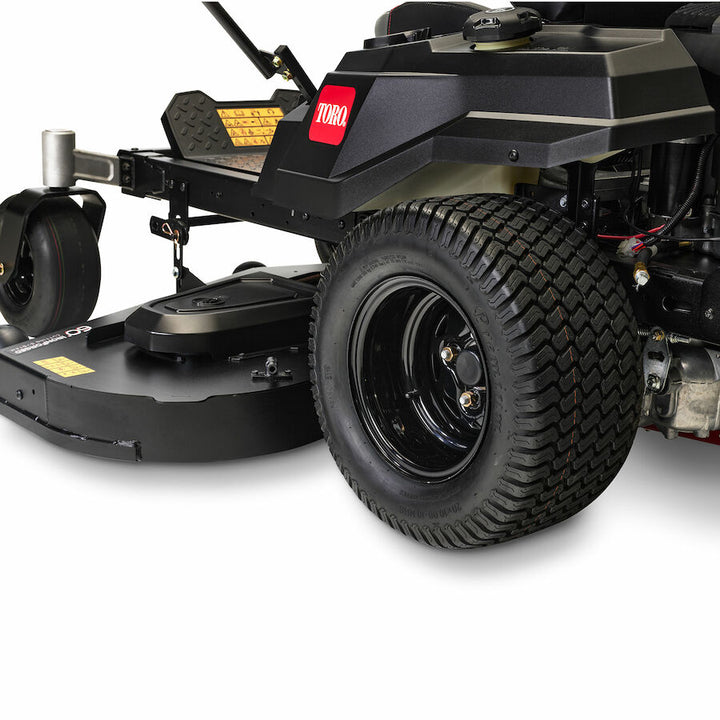

Drive Tires (Rear): 20 in. x 10 in. - 10 in. (50.8 cm x 25.4 cm - 25.4 cm)
Comfort and Convenience:
-
Seat: MyRIDE® Suspension System with Arm Rests
-
Shocks: 1 Front Center / 2 Rear
-
Steering Controls: Dual-Action Single-Bail
-
Cup Holder: Standard
-
Hour Meter: Standard
-
Start Type: Electric
-
Controls: Dual Wrap Around Levers
-
Hitch Bracket: Standard
Terrain Handling:
-
Drive Type: Rear-Wheel Drive
-
Brake System: Electric Parking Brake - Internal
Compliance and Maintenance:
-
CARB Compliant: Not CARB Compliant
-
Recommended Oil Type: 10W-30
-
Hydraulic Fluid: Synthetic
-
Spindle Bearings: Maintenance-free
-
Greasable Bearings: Yes
-
Clutch: Electromagnetic
Additional Features:
-
Air Filter: Low Profile Air Cleaner (LPAC)
-
Comfort Platform: MyRIDE® Suspension System
-
Carrier Frame: 3.3 in. x 1.75 in. x 10 gauge
