Description:
No matter how you cut it, the Toro TimeCutter MAX arms you with professional performance, rock-solid durability and best-grass-in-the-neighborhood precision. Built with over a century of pro-level engineering, this lawn-dominating machine features a heavy-duty IronForged deck, beefy, traction-happy tires, easy maintenance, and a plush, gaming-style seat to give you the edge over whatever nature throws your way.
Features:
- Over 100 years of Pro DNA course through the veins of every mower we build.
- Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way.

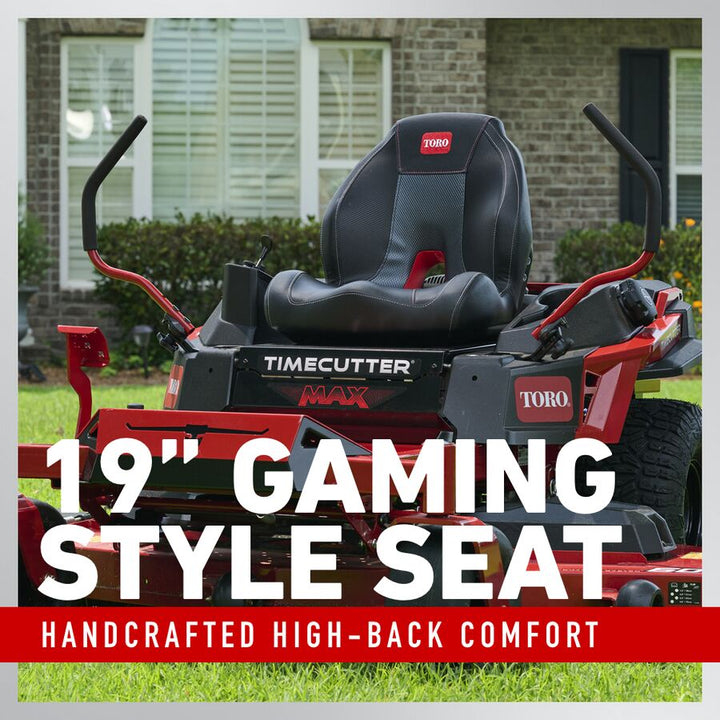

- The gaming-style seat gives you big time support exactly where you need it.
- The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.

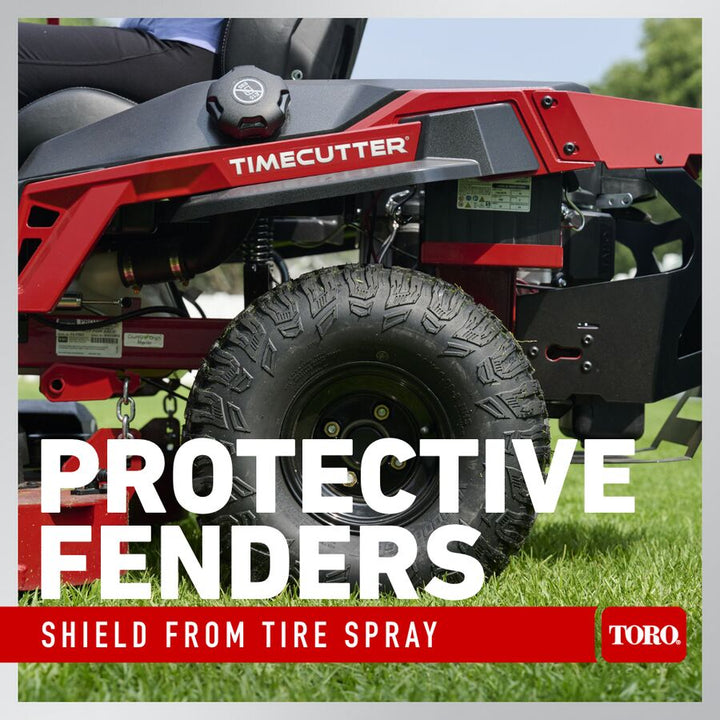

- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- Download the MyToro app from your mobile device's app store for easy access to product resources, including manuals, how-to's, and more
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
- The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.
Specifications:
-
Product Type: Zero-Turn Mower
-
Product Use: Residential
-
Start Type: Electric
-
Weight: 653 lbs / 296.2 kg
-
Box Dimensions: 82 in. x 57 in. x 35 in. (208.3 cm x 144.8 cm x 88.9 cm)
-
Hour Meter: Optional
-
Fuel Type: Gasoline
-
Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
-
Terrain Type: Flat with Obstacles
-
Tow Capacity: Max 1,000 lbs (combined machine, user, and towed weight)
-
CARB Compliant: No
Engine & Transmission
-

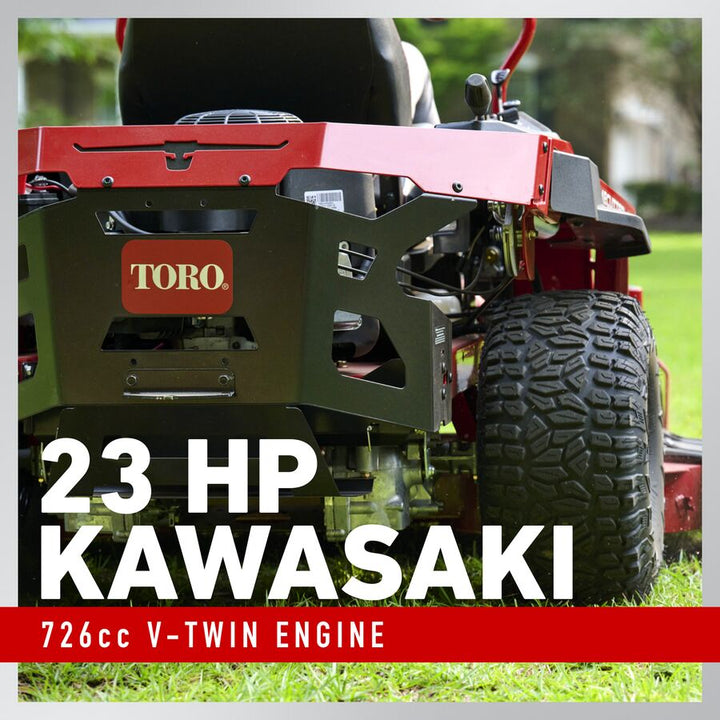

Engine Brand: Kawasaki
-
Engine Model: FR691V
-
Displacement: 726 cc
-
Horsepower: 23.0 hp
-
Power: 17.2 kW
-
Cooling System: Air Cooled
-
Crankshaft: 1" (25 mm) with Steel Protector
-
Air Filter: Standard Kawasaki Air Cleaner
-
Recommended Oil: 10W-30
-
Drive Type: Rear-Wheel Drive
-
Drive System: HYDRO
-
Transmission: Dual Hydrostatic HG-EZT2200
-
Hydraulic Drive: Standard
-
Forward Speed (Mowing/Transport): Up to 7.0 mph / 11.2 kph
Deck & Cutting System
-
Deck Size: 54 in / 137 cm
-
Deck Design: 10-Gauge IrongForged® Steel
-
Deck Material: 10 Gauge Steel
-
Blade Tip Speed: 17,700 ft/min / 5,395 m/min
-
Number of Blades: 3
-
Cutter System: Steel Cutting Blade
-
Discharge Chute: Side
-
Height of Cut: 1.0 – 5.0 in. / 2.5 – 12.7 cm
-
Foot Operated Height Adjustment: Standard
-
Anti-Scalp Wheels: 3 Standard
-
Washout Port: Standard
-
Bagger Capacity: 4.9 bushels
Operator Features
-
Seat: 19" Gaming Style
-
Armrests: Optional
-
Comfort Platform: Standard Suspension
-
Steering Controls: Twin Lever
-
Steering Dampeners: Standard
-
Cup Holder: Standard
-
Lighting: Optional
-
Hitch Bracket: Standard
Frame & Tires
-
Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
-
Carrier Frame: 3 in. x 1.5 in. x 0.120 in. Wall Tubular Steel
-
Caster Tires: 12 in. x 6 in. - 5 in. Pneumatic
-
Drive Tires: 20 in. x 10 in. - 8 in.
-
Tires: 12 in. x 6 in. Front / 20 in. x 11 in. Rear
Spindles & Maintenance
-
Spindle Bearings: Maintenance-free
-
Spindle Housing: Cast-Aluminum
-
Greasable Bearings: Yes
| Width |
Weight |
Height |
Length |
| 0 Inch |
653 Pounds |
0 Inch |
0 Inch |
