Description:

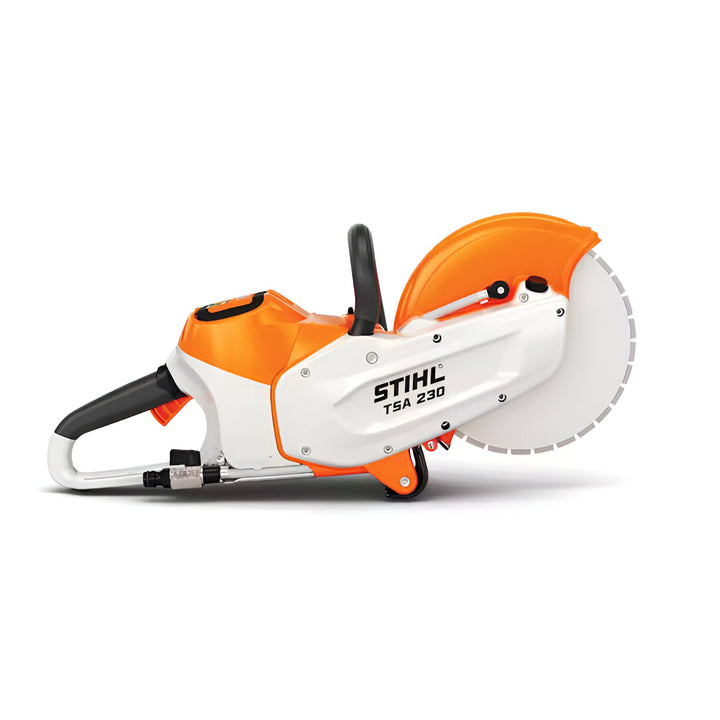

STIHL® introduces another world’s first—a cut-off machine powered by 36-volt lithium-ion battery technology. The TSA 230 STIHL® Cutquik® cut-off machine starts instantly and changes the game for the jobsite, delivering maneuverability and solid cutting performance in a lightweight, compact package. Its onboard water control helps suppress dust while a toolless wheel lock prevents wheel rotation when removing the wheel attachment bolt. Because it is battery powered, there is no air filter to maintain. The TSA 230 not only provides great value—priced below its gasoline-powered counterparts—but this STIHL® Cutquik® also offers groundbreaking innovation grounded in quality engineering.
Run time may vary based on battery type, charge level and capacity, model, operating style, and conditions. Batteries and chargers can be purchased separately or as a combined set with tool.
Features:
- Sealed Control Unit - Sealed control unit for improved water resistance while wet cutting.
- Magnesium Guard - The cutting wheel guard is made from lightweight and durable magnesium to improve maneuverability.
- Spindle Locking Mechanism - The spindle locking mechanism allows the user to lock the wheel rotation for easier removal of the wheel.
- Water Connection and Shut-Off Valve - The water connection is designed for the user to shut off the water when the unit is not in use and not waste water.
- Sealed Belt Drive - Maintenance-free sealed belt drive.
- STIHL® QuickStop™ Wheel Brake - Allows extended guard adjustability by reducing the risk of injury from kickback when the guard has been adjusted to expose the top portion of the wheel
- Electronic Coaster Brake - Stops wheel after use.
- Lightweight Portability - This product is lightweight for easy portability, great maneuverability, and extended use.
- Compact, Ergonomic Design - The compact, ergonomic design provides more comfortable use.
- Brushless Motor - The advanced brushless motor virtually eliminates maintenance while supplying the power and performance you expect from STIHL®.
- Reduced-Emission Engine Technology—Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Specifications:
-
Power Source: Battery
-
Weight: 8.6 lbs.
-
Maximum Cutting Depth: 2.75 inches
-
Maximum Wheel Size: 9 inches
-
Arbor Size: 7/8 inch
-

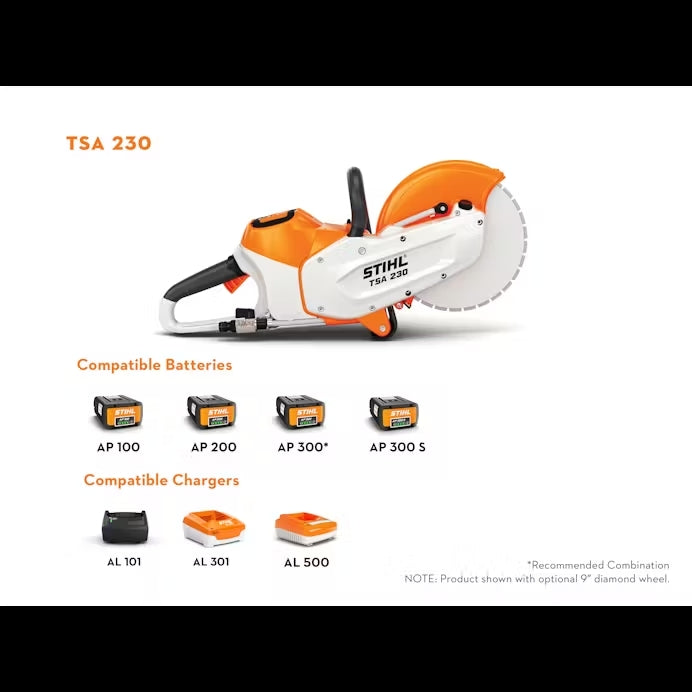

Battery System: AP System
-
Voltage: 36 volt
-
Run Time (w/ AP 200 battery): Up to 14 minutes
-
Run Time (w/ AP 100 battery): Up to 7 minutes
-
Run Time (w/ AP 300 S battery): Up to 22 minutes
-
Run Time (w/ AP 300 battery): Up to 18 minutes
| Width |
Weight |
Height |
Length |
| 0 Inch |
8.6 Pounds |
0 Inch |
0 Inch |
