Description:

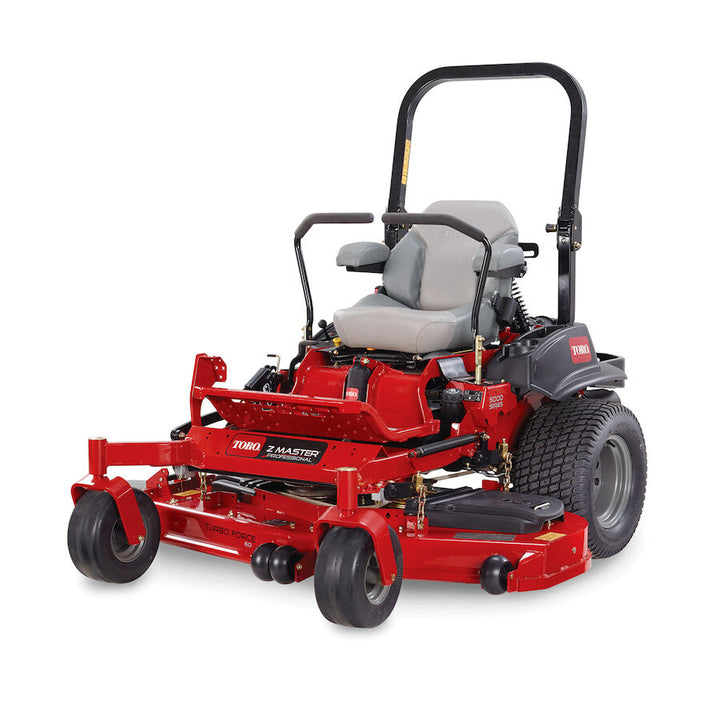

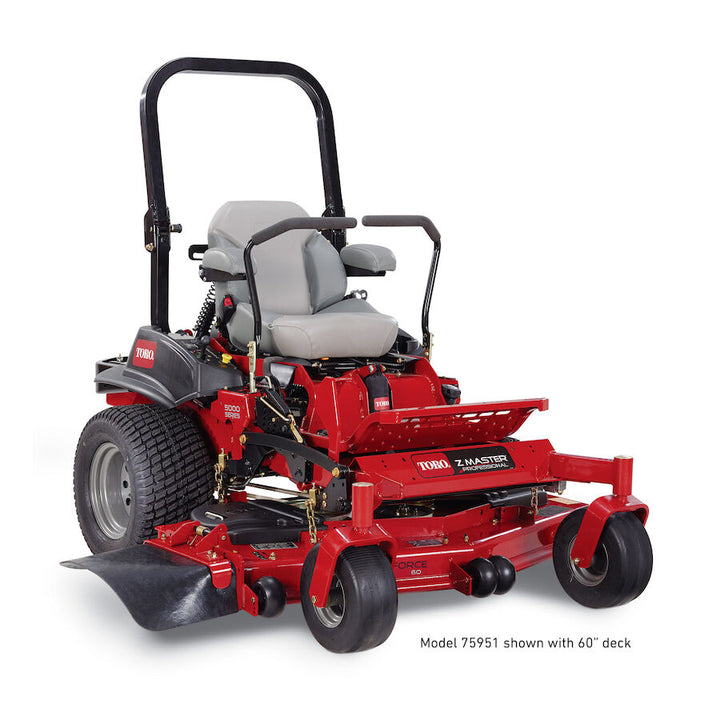

Z Master® 5000 Series- 25 hp (18.4kW) Kohler® Command Pro EFI 747cc Engine with 60 in. (152 cm) TURBO FORCE® deck and the all NEW amazingly comfortable MyRIDE® Suspension System.
Features:
- Redesigned MyRIDE® Suspension System features a fully suspended operator platform and adjustable rear shocks to provide a superior ride.
- Our TURBO FORCE deck features heat-treated steel blades and our patented adjustable discharge chute, nothing cuts as fast or as well
- Unitized pump and wheel motor uses proven commercial hydraulic components while eliminating hoses and other potential leak points
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Specifications:
- Product Type: Zero Turn Mowers
- Product Use: Commercial
- Weight: 1,132 lbs / 513.5 kg
- Box Dimensions: 91 in. x 70.5 in. x 52.5 in. / 213.1 cm x 179.1 cm x 133.4 cm
Engine
- Engine Brand: Kohler
- Engine: 25 hp* (18.4 kW) Kohler® Command Pro EFI 747 cc
- Engine Displacement (cc): 747 cc
- Engine Horsepower: 25 hp
- Start Type: Electric
Drive System
- Drive System: Hydraulic Unitized Pumps and Wheel Motors
- Forward Ground/Transport Speed: Up to 10.0 mph / 16.0 kph
Fuel System
- Fuel Capacity: 12 gal. / 45.4 L / 48 Qt.
- Fuel Type: Gasoline
- CARB Compliant: Yes
Cutting System
- Deck Size: 60 in / 152 cm
- Deck Design: 80-Grade 7-gauge 60" (152 cm) TURBO FORCE® with bull-nose bumper
- Deck Material: 11 Gauge Steel
- Blades: 0.204 in. (0.5 cm) heat-treated steel
- Blade Tip Speed: 18,500 ft/min / 5,638 m/min
- Height of Cut: 1.0 - 5.5 in. / 2.5 - 14.0 cm
- Anti Scalp Wheels: 6 Standard, 1 Optional
- Discharge Chute: Rubber
- Adjustable Discharge Baffle: Standard, Tools-Free
Comfort and Controls
- Comfort Platform: MyRIDE® Suspension System
- Platform Travel: 3.6 in / 9.1 cm
- Shocks: 1 Front Center / 2 Rear
- Adjustment: 5 point adjustment on rear shocks
- Seat: Handcrafted Deluxe Suspension Seat with Arm Rests Featuring Bullhorn Accent
- Armrests: Standard
- Steering Controls: 1-5/8" (4.1 cm) Diameter Grips; Adjustable, Dampened
- Hour Meter: Standard
- ISO Mounts: Qty 4, 2.5 in. 3-D isolation mounts
Tires
- Drive Tires: 24 in. x 12 in. - 12 in. (61 cm x 30.5 cm - 30.5 cm)
- Caster Tires: 13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic
Frame and Construction
- Carrier Frame: 3 in. x 1.5 in. x 10 gauge (7.6 cm x 3.8 cm x 10 gauge)
- Front Bumper: Reinforced Bull-Nose
- Spindle Bearings: Maintenance-free
- Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
Safety Features
- Roll-Over Protection (ROPS): Folding; Standard
Additional Features
- Hydraulic Fluid: Premium synthetic
- Clutch: Electromagnetic
| Width |
Weight |
Height |
Length |
| |
1132 Pounds |
|
0 Inch |
