Description:

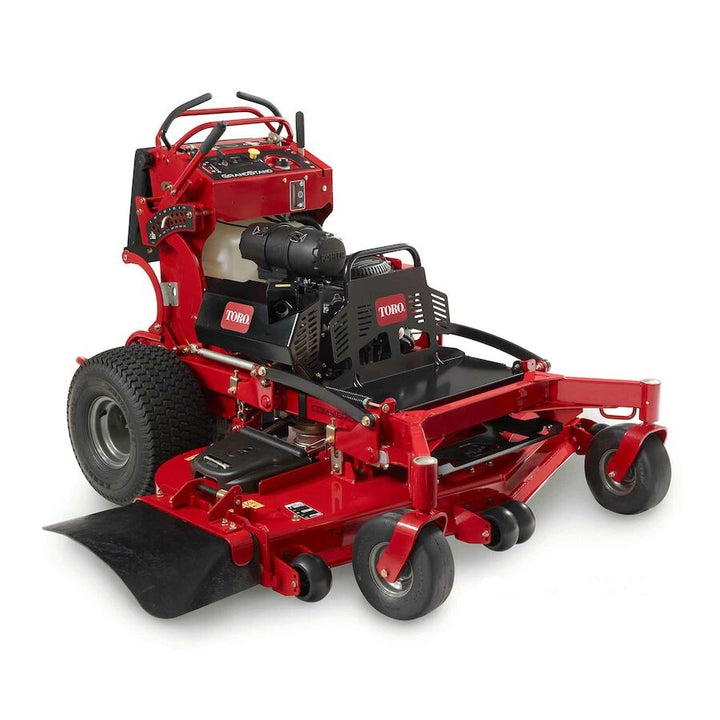

Rough bumps and challenging terrain are all in a day’s work. Feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. And now the GrandStand is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 23.5 hp Kawasaki FX 726cc engine.
Features:
- Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
- Foldable operator platform instantly converts the machine to a walk-behind.
- Great visibility for easy navigation around obstacles, protecting the operator, mower, and property.
- Quick access to the engine, hydros and controls with the easy removal of the fuel tank.
- No hydraulic hoses, reduced parts, no routine greasing and simplified design to save you time.
- Self-adjusting suspension and a larger platform area for a more secure stance on sloped terrain.
- The TURBO FORCE® cutting deck is built to withstand the long, tough days on the job.
- 10.5 gallon fuel tank for fewer fill-ups. Transparent tank make it easy to gauge the fuel level.
- A wide stance and optimal balance enhance hillside stability and control.
- Horizon360® Business Management Software. Work More Efficiently. Run More Profitably.
Specifications:
-
Product Type: Stand-On Mower
-
Product Use: Commercial
-
Weight: 960 lbs / 435.4 kg
-
Start Type: Electric
-
Hour Meter: Standard
Engine
-
Engine Brand: Kawasaki
-
Engine Model: FX730V
-
Engine Displacement: 726 cc
-
Engine Horsepower: 23.5 hp*
-
Fuel Type: Gasoline
-
Fuel Capacity: 10.5 gal / 39.7 L / 42 Qt
-
CARB Compliant: Not CARB Compliant
Drive System
-
Drive Type: Unitized Pumps (10cc/rev) with Wheel Motors (10 cu in)
-
Forward Ground Speed / Transport Speed: Up to 10.0 mph / 16.0 kph
-
Clutch: Electromagnetic
-
Hydraulic Fluid: Premium synthetic
Cutting Deck
-
Deck Size: 60 in / 152 cm
-
Deck Design: 7-gauge TURBO FORCE® with Bull-Nose Bumper
-
Deck Material: 7-Gauge Steel
-
Height of Cut: 1.5 - 5.0 in / 3.8 - 12.7 cm
-
Blade Tip Speed: 18,500 ft/min / 5,638 m/min
-
Blades: 0.204 in (0.5 cm) heat-treated steel
-
Spindle Housing: 9 in / 22.9 cm Diameter Cast Aluminum
-
Spindle Bearings: Maintenance-free
-
Discharge Chute: Rubber
-
Adjustable Discharge Baffle: Standard, Tools-Free
Frame and Tires
-
Carrier Frame: 3 in x 1.5 in x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
-
Caster Tires: 11 in x 4 in - 5 in (27.9 cm x 10.2 cm - 12.7 cm), Flat-Free Semi-Pneumatic
-
Drive Tires: 20 in x 10.5 in - 8 in (50.8 cm x 26.7 cm - 20.3 cm)
-
Front Bumper: Reinforced Bull-Nose
-
Anti-Scalp Wheels: Standard
Operator Features
-
Comfort Platform: Foldable Operator Platform with Suspension
-
Controls: Twin Lever
-
Steering Controls: Twin Lever
Air & Filtration
-
Air Filter: Heavy-Duty Canister Air Cleaner
Dimensions
-
Box Dimensions: 90 in x 70 in x 52 in / 228.6 cm x 177.8 cm x 132.1 cm
